Home / Products / Tubular Sleeves & End Caps

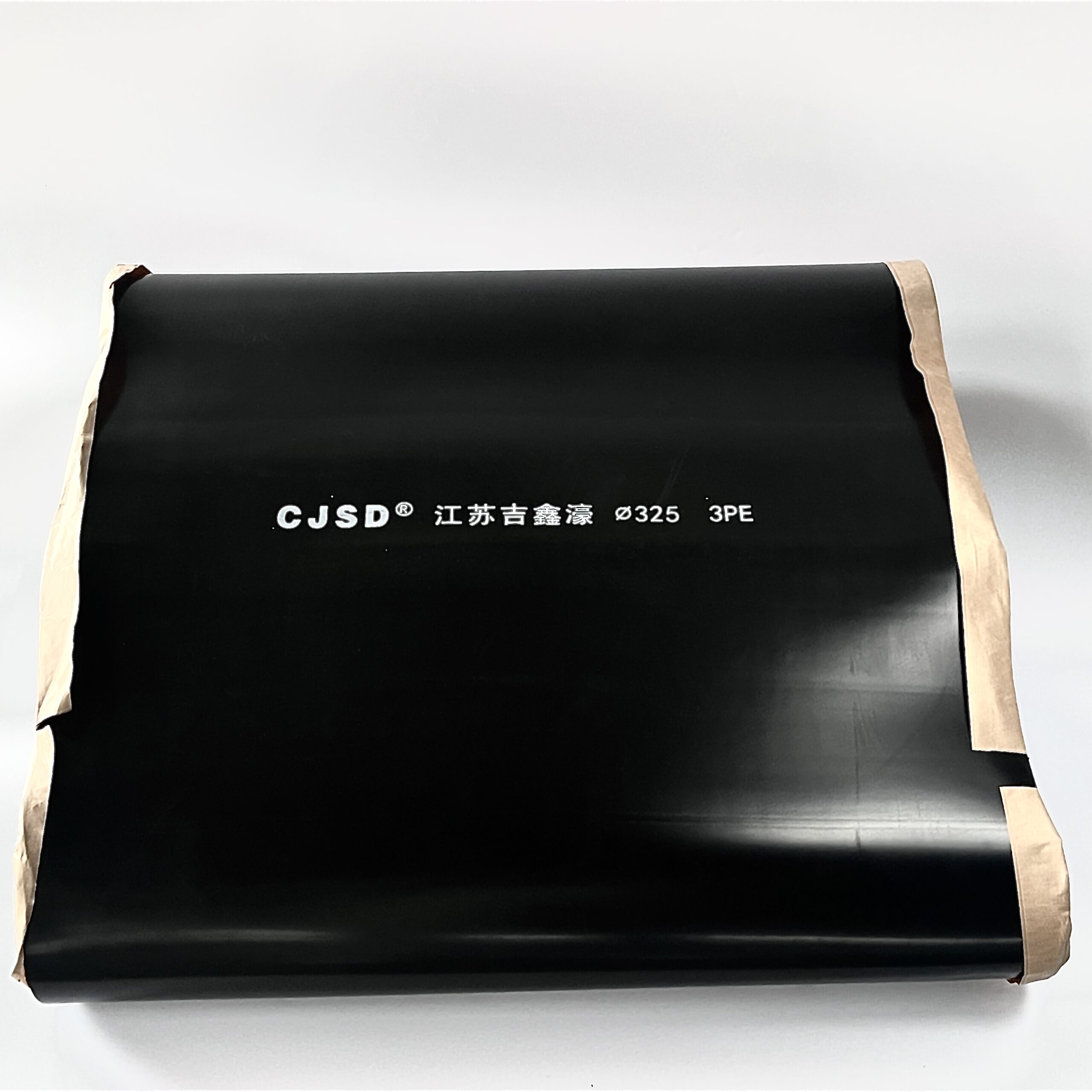

Closed tubular heat shrinkable sleeves for external corrosion protection of steel pipeline field joints.
DN65–DN800 • Standard width: 500 mm • Standard thickness: 2.0–2.5 mm
Request a Product Quote Browse All ProductsPipe diameter
DN65–DN800; customizable
Standard width
500 mm
Custom width
100–700 mm
Standard thickness
2.0–2.5 mm
Custom thickness
1.5–3.0 mm

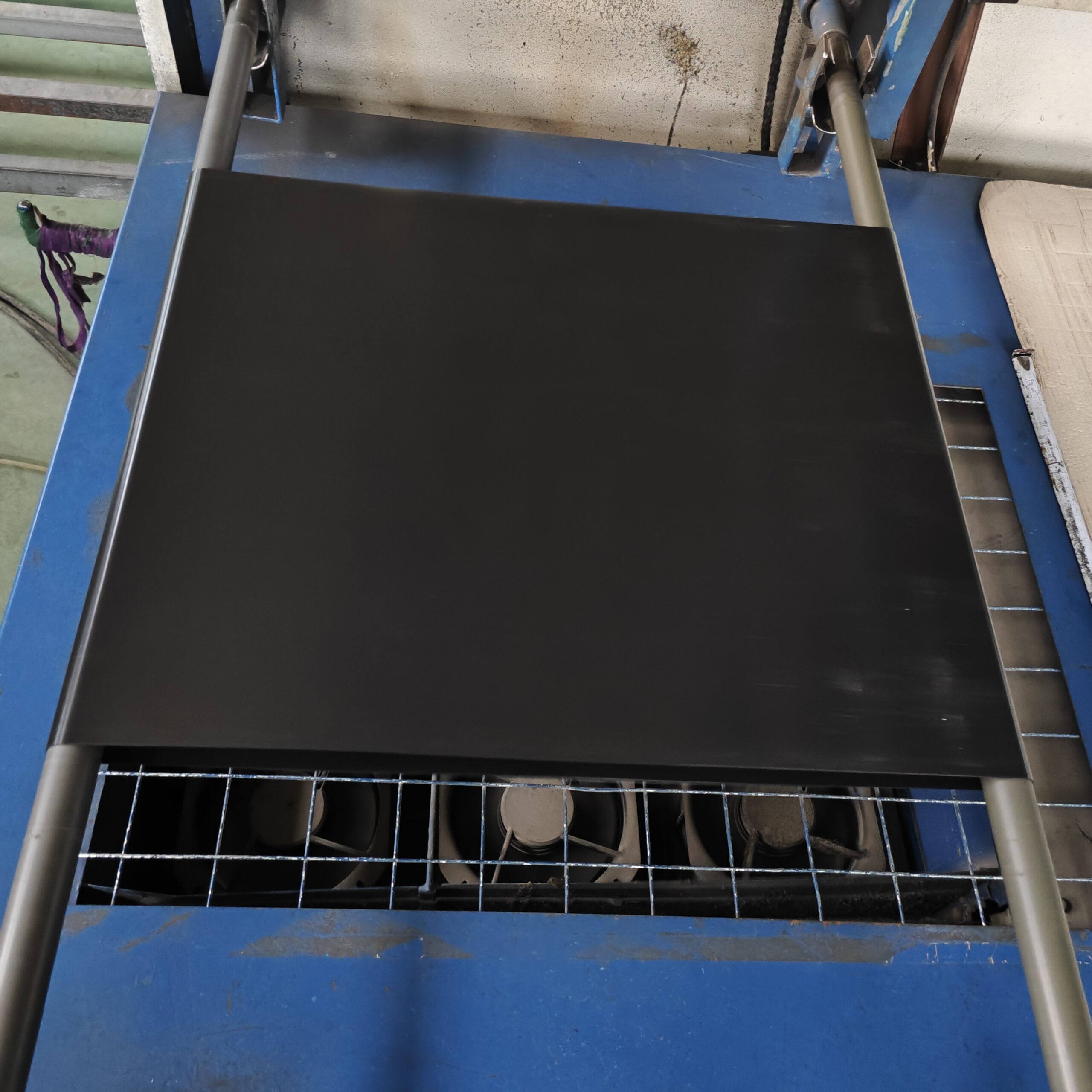

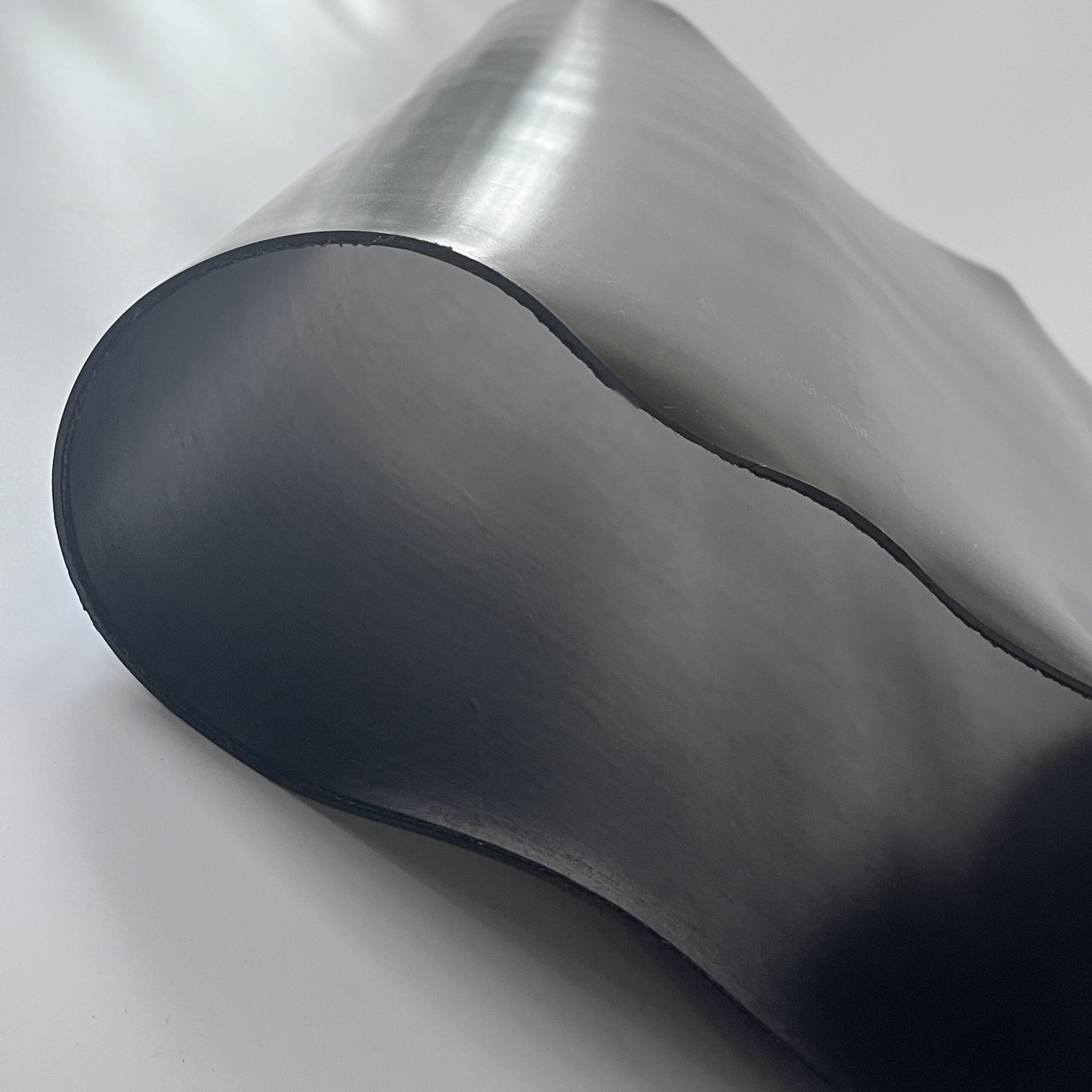

The closed sleeve is positioned on the pipe before welding and moved over the prepared joint after welding. A polyethylene backing and hot-melt adhesive provide protection and sealing with the specified coating system.
Welded pipeline joints requiring a pre-fitted closed sleeve. Select the primer and sleeve configuration for the specified two-layer or three-layer protection system.
Pipe diameter: DN65–DN800, customizable. Standard width: 500 mm; custom width: 100–700 mm. Standard thickness: 2.0–2.5 mm; custom thickness: 1.5–3.0 mm.

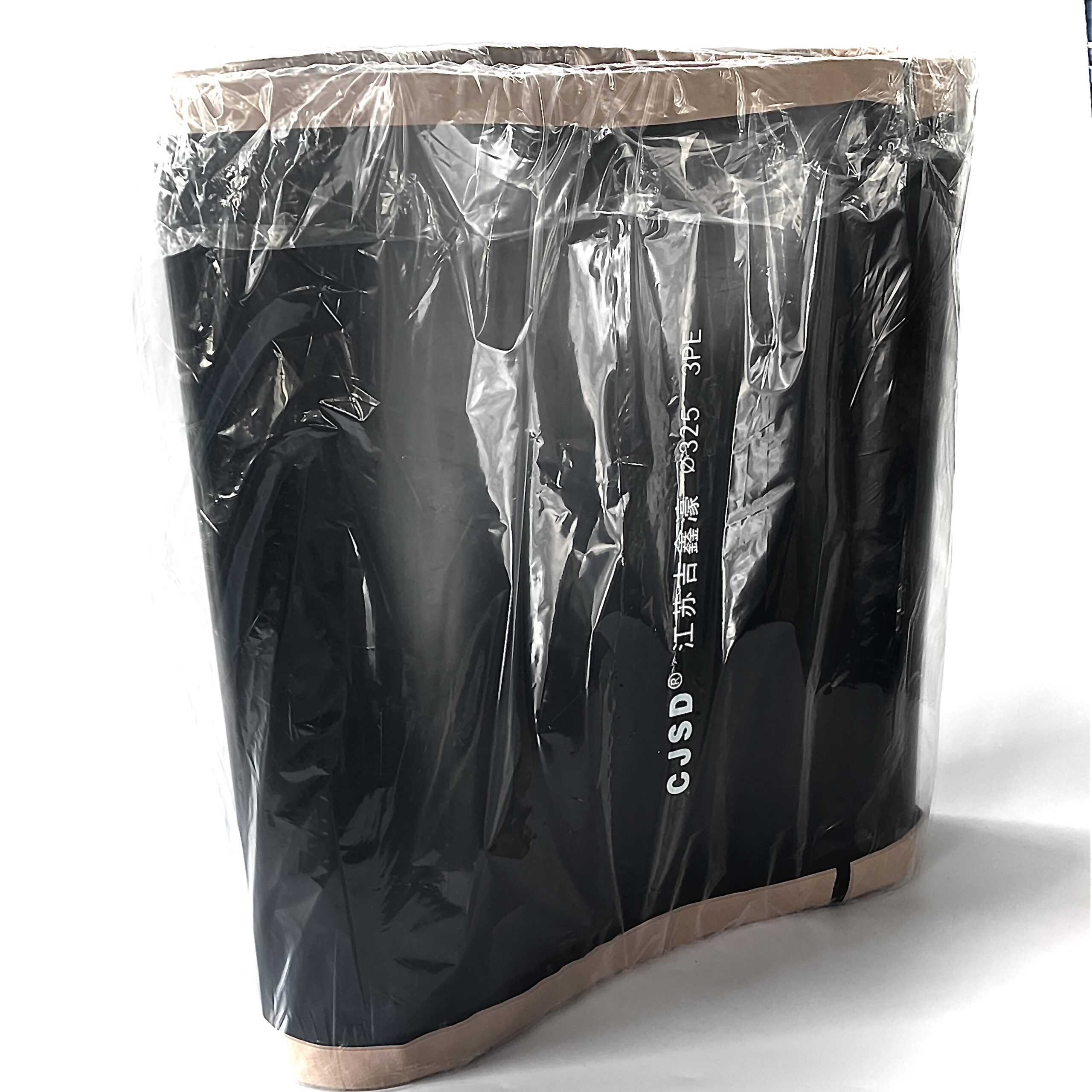

Typical kits include the sleeve, two-component solvent-free epoxy primer, brush and stirrer. Carton or woven-bag packaging. Confirm kit configuration when ordering.
Ask for the applicable technical data sheet, inspection documentation and available test reports for your selected system. Referenced standards include GB/T 23257, GB/T 51241, ISO 21809-3 and EN 12068; compliance and acceptance requirements must be confirmed for the specific product and project.
Store at 5–30°C, below 75% relative humidity, away from heat and flames. The stated storage period is 12 months under the recommended conditions. Installation should follow the supplied technical instructions and the project-approved surface preparation, primer and heating procedure.
Send the pipe outside diameter, operating conditions, existing coating, required dimensions, quantity, delivery destination and project standard. Our team can then confirm the appropriate system and provide a product-specific quotation.
